NFPA 1850:2026 and NFPA 1900:2024 standards mandate that individuals involved in filling scba cylinders be safeguarded against the risk if catastrophic cylinder failure. This protection is to be provided through the use of a fully enclosed air filling station, which must undergo rigorous testing to withstand pressures up to 6050 psi. Additionally, this testing must be witnessed to ensure the station's ability to contain potential cylinder fragments during a failure.
|
|
|
|
Mobile Containment
Fill Stations - Class 2
|
|
BoomBox6K™ mobile containment fill stations for firetrucks and air trailers to provide enhanced safety for operator when refilling SCBA cylinders and SCUBA cylinders at the scene. This is a Class 2 fill station. BoomBoxes as we've named them, provide operator protection from the cylinder fragments of a ruptured SCBA cylinder, SCUBA cylinder or other high pressure breathing apparatus cylinder. The accompaning air blast is not contained. BoomBox™ is used on rescue trucks, air trucks and in stationary refill applications for the air refill station operator when refilling high pressure breathing air cylinders. Call us now for answers to your containment fill station questions. Click Here To View A Ruptured Cylinder!
|
|
- BoomBox6K™ 1 Position Fill Station
Ready for a custom air control panel to be mounted on top or either side
Truck Mount - For SCBA up to 5500 PSI
AC70510M
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
-
- • Single action locking bar activation
- • Filling hose with on/off control & bleed valve
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 40" x 20" x 21"
Weight: 475 lbs
-
|
|

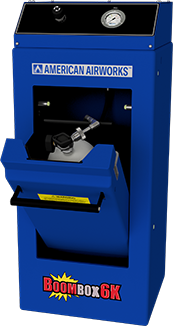

- BoomBox6K™ 1 Position Fill Station with Standard Panel
Truck Mount - For SCBA up to 5500 PSI
AC70510SPM
• NFPA 1901 & NFPA 1900:2024 Edition compliant
-
- • Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
-
- • Single action locking bar activation
-
- • Fill control valve and pressure gauge
-
- • Filling hose with bleed valve
-
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 46" x 20" x 21"
Weight: 495 lbs
|
|

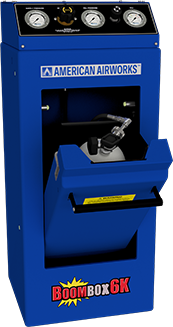

- BoomBox6K™ 1 Position Fill Station with Regulated Panel
Truck Mount - For SCBA up to 5500 PSI
- AC70510RPM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Adjustable regulator, Fill pressure gauge, Fill control valve and gauge
• Filling hose with bleed valve
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 46" x 20" x 21"
Weight: 500 lbs
|
|

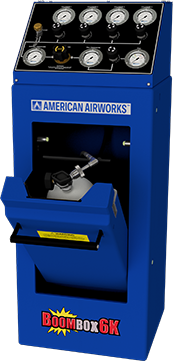

- BoomBox6K™ 1 Position Fill Station with 4 Bank Air Control Panel
Truck Mount - For SCBA up to 5500 PSI
- AC70510A-4AM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
• Single action locking bar activation
• 4 Bank Air Control Panel includes: Supply pressure gauges & valves, Adjustable regulator, Fill pressure gauge & Fill control valve with gauge
• Filling hose with bleed valve
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 51" x 20" x 21"
Weight: 518 lbs
OPTIONAL
AC70510A-4CM
Includes all features of the AC70510A-4AM, plus:
• Priority Fill Selection system, allowing filling directly from the compressor or storage supply.
Optional
AC70510A-4CM
Click to view
|
|
-
-
-
-
-
-
-
- BoomBox6K™ 2 Position Fill Station
Ready for a custom air control panel to be mounted on top or either side
Truck Mount - For SCBA up to 5500 PSI
- AC70520M
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
-
- • Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
- • Single action locking bar activation
- • Fill control valves
- • Dual filling hoses with bleed valves
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD):40" x 30" x 21"
Weight: 640 lbs
Note: Dimensions & Weight do not include panel
|
|
-
-
-
-
-
-
-
-
-

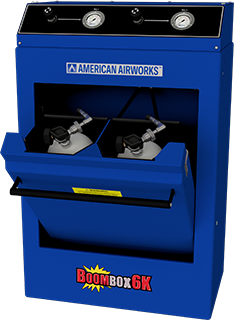

- BoomBox6K™ 2 Position Fill Station with Standard Panel
Truck Mount - For SCBA up to 5500 PSI
-
- AC70520SPM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
-
- • Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
- • Single action locking bar activation
- • Fill control valves and pressure gauges
- • Dual filling hoses with bleed valves
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD):46" x 30" x 21"
Weight: 665 lbs
|
|
Designed to contain the fragments of accidental cylinder rupture or hose failure, while allowing the air blast to be vented quickly and in a direction away from the operator. A safety interlock prevents SCBA or SCUBA filling unless the front access door is completely closed and locked in place. The carriage design "tilts" toward the operator whenever the door is opened. This facilitates loading and unloading cylinders and minimizes operator fatigue.
Additional custom air control panels can be mounted to these fill stations.
-
-
-
-
-
-
-

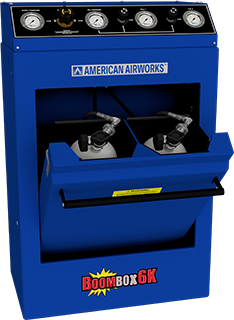

- BoomBox6K™ Dual Position Fill Station with Regulated Panel
Truck Mount - For SCBA up to 5500 PSI
- AC70520RPM
• NFPA 1901 & NFPA 1900:2024 Edition compliant
• Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 8.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD):46" x 30" x 21"
Weight: 670 lbs
|
|
-
-
-
-
-
-

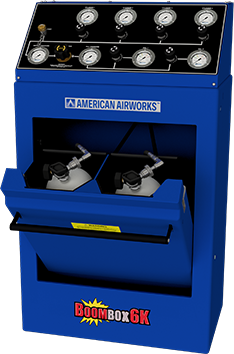

- BoomBox6K™ 2 Position Fill Station with 4 Bank Air Control Panel
Truck Mount - For SCBA up to 5500 PSI
- AC70520A-4AM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 51" x 30" x 21"
Weight: 690 lbs
- OPTIONAL

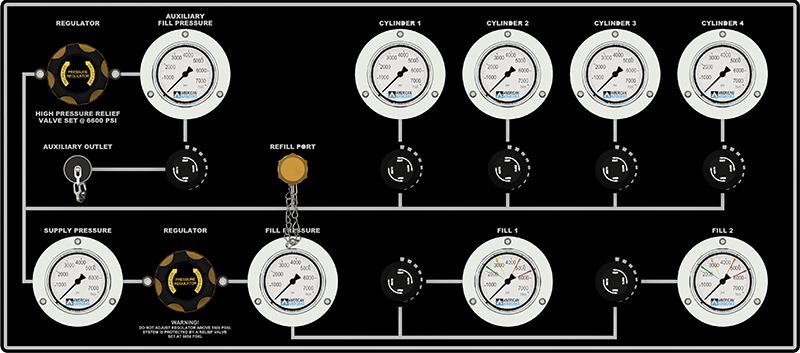

AC70520A-4BM
Includes all features of the AC70520A-4A as well as:
- • Auxillary Outlet Connection with Regulator, Valve & Gauge

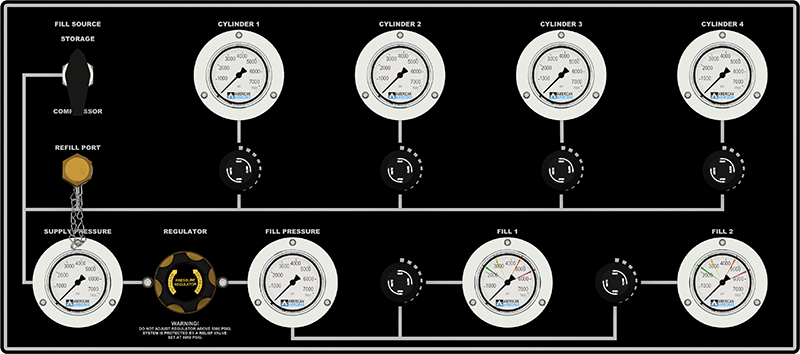

AC70520A-4CM
Includes all features of the AC70520A-4A, plus:
- • Priority Fill Selection system, allowing filling directly from the compressor or storage supply.
AC70520A-4DM
Includes all features of the AC70520A-4A, plus:
• Auxiliary outlet connection, with a regulator, valve, and gauge
• Priority Fill Selection system for directing fills from either the compressor or storage supply
|
|
-
-
-
- BoomBox6K™ 3 Position Fill Station
Ready for a custom air control panel to be mounted on top or either side
Truck Mount - For SCBA up to 5500 PSI
- AC70530M
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
-
- • 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
- • Single action locking bar activation
- • Fill control valves
- • 3 filling hoses with bleed valves
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD):40" x 30" x 21"
Weight: 814 lbs
Note: Dimensions & Weight do not include panel
|
|
-
-
-
- BoomBox6K™ 3 Position Fill Station with Standard Panel For SCBA up to 5500 PSI
- AC70530SPM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
-
- • 3 Position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
-
- • Single action locking bar activation
-
- • Fill control valves and pressure gauges
-
- • 3 Filling hoses with bleed valves
-
- • 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD):46" x 40" x 21"
Weight: 848 lbs
|
|
-
-
-
-
- BoomBox6K™ 3 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI
- AC70530RPM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 46" x 40" x 21"
Weight: 850 lbs
|
|
-
-
-
-
-
- BoomBox6K™ 3 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI
- AC70530A-4AM
- • NFPA 1901 & NFPA 1900:2024 Edition compliant
- • 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• 3 Filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.
Dimensions (HxWxD): 51" x 40" x 21"
Weight: 870 lbs
OPTIONAL
AC70530A-4BM
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge

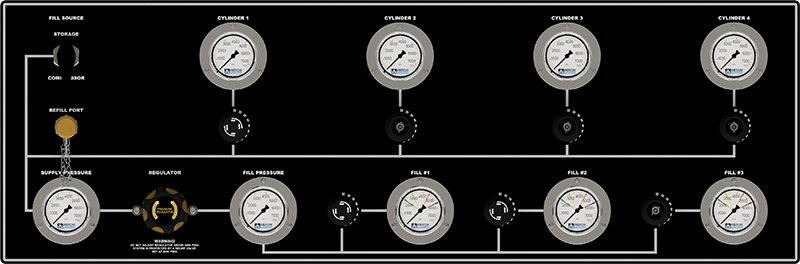

AC70530A-4CM
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Priority Fill Selection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge

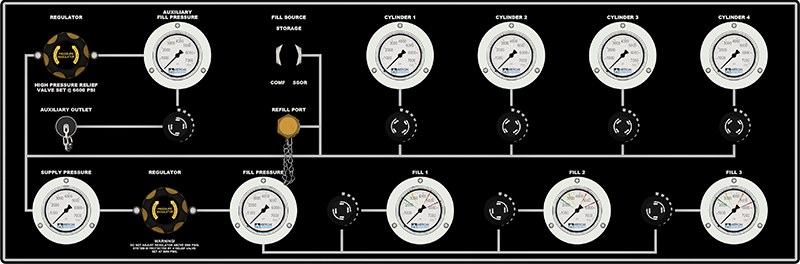

AC70530A-4DM
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Priority Fill Selection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge
|
|
|
|
|
CAUTION: Containment fill stations are designed only to contain cylinder fragments in the event the cylinder should ruture during the filling process. This will not stop the air blast of a ruptured cylinder. Install these units vertically.
|
|
SpaceSaverTM Fill Stations
Mobile fill stations are now available for tight spaces. The SpaceSaver™ has been designed to help meet the NFPA standard 1901 for containment fill stations to be placed on all new emergency vehicles. The Space Saver SCBA refill station, has a dual cylinder tray that tilts out and in. The upper panel slides down to activate the safety interlock function of the fill station. This prevents the cylinders from being refilled unless the door is fully closed. Space Saver tray is assisted with gas springs for easier operation. Fill either one or two SCBA at one time. Place two of these units on a truck and you can be filling two cylinders, while changing out two cylinders. Meets NFPA 1901 safety standards for containment fill stations and maximizes the available space on your truck, van or trailer.
American Airworks has custom air fill panels for this unit. Click here to see two panels specifically designed for the SpaceSaver. Space Saver includes two internal CGA 347 handtight nut/nipple, on/off line valve and 6000 PSI flexible fill hoses. Image shows cylinders being loaded for refilling.
The SpaceSaver has been third party tested to meet the NFPA 1901 standard for containment fill stations. For SCBA up to 4500 PSI
AC70095-2VTG - Grey
13" W x 23" D x 42 1/2"H (53" open)
400 lbs.
AC70095-2VTR - Red
13" W x 23" D x 42 1/2"H (53" open)
400 lbs.
|
|
SpaceSaver™
AC70095-2HTG - Horizontal Grey
42.5" W x 25" D x 13"H
400 lbs.
AC70095-2HTR - Horizontal Red
42.5" W x 25" D x 13"H
400 lbs.
|
|
IMPORTANT!
During the last 5 years, approximately ten SCUBA, SCBA and DOT compressed air cylinders have exploded each year. 90% of these cylinders exploded while being refilled. ---- Bill High of PSI, Inc.
|
|
|
|
|
|
|
|
|
 |
|
|
