Stationary containment fill stations, for SCBA refills, provide the cylinder refill operator with a greater measure of safety. History has shown that most breathing air cylinder ruptures occur when the cylinder is being refilled with air. Click Here To View A Ruptured Cylinder!

Containment fill stations have been third party tested and certified to contain the cylinder fragments from a ruptured SCBA or SCUBA cylinder. Buyers of containment fill stations should demand proof of certification by a third party testing lab or engineering firm.

Optional air control panel provides the operator with increased control over the filling process, as well as the option of plumbing from the fill station to a cascade system, compressor or air booster pump.

Our BoomBox6K™ containment fill stations provide containment protection at an affordable cost. We sell oxygen fill stations too.

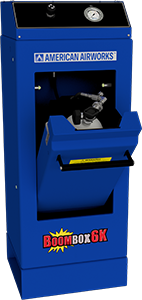

BoomBox6K™ 1 Position Fill Station with Standard Panel For SCBA up to 5500 PSI

AC70510SP

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time

• Single action locking bar activation

• Fill control valve and pressure gauge

• Filling hose with bleed valve

• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 52" x 20" x 21"
Weight: 565 lbs

BoomBox6K™ AC70510 Brochure

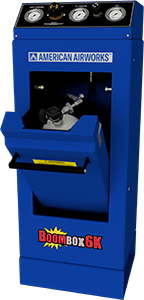

BoomBox6K™ 1 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI

AC70510RP

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Adjustable regulator, Fill pressure gauge, Fill control valve and gauge
• Filling hose with bleed valve
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 52" x 20" x 21"
Weight: 570 lbs

BoomBox6K™ AC70510 Brochure

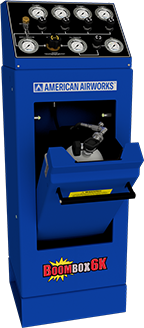

BoomBox6K™ 1 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI

AC70510A-4A

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
• Single action locking bar activation
• 4 Bank Air Control Panel includes: Supply pressure gauges & valves, Regulator, Fill pressure gauge & Fill control valve with gauge
• Filling hose with bleed valve
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 57" x 20" x 21"
Weight: 588 lbs

OPTIONAL
AC70510A-4C
Includes all features of the AC70510A-4A, plus:
• Priority Fill Selection system, allowing filling directly from the compressor or storage supply.

BoomBox6K™ AC70510 Brochure

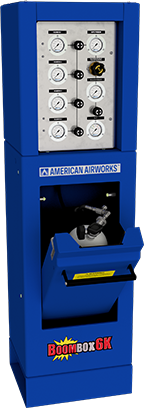

BoomBox6K™ Fill Station with Cascade Air Control Panel

AC70510T-4A

Boombox containment fill stations, equipped with air cascading gauges and on/off panel valves, provide easy and precise control of the SCBA refilling operation. They also give you a greater number of SCBA cylinder refills than a bulk fill air control panel. Tilt out cylinder tray makes loading and unloading of cylinders easy. Slides on cylinder trays protect cylinders from scuffing. The fill hose is designed for easy connection inside the fill station.

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• Single containment fill station allows for filling one SCBA or SCUBA cylinder at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, fill pressure gauge, fill control valve and gauge
• Filling hose with bleed valve
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 70" x 20" x 21"
Weight: 634 lbs

BoomBox6K™ AC70510 Brochure

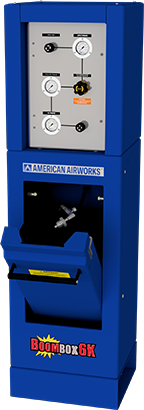

BoomBox6K™ Bulk Fill Air Station with Integrated Control Panel

AC70510TB

The BoomBox6K™ bulk fill system combines multiple supply cylinders into a single source, simplifying the air delivery process by utilizing a single pressure gauge for the operator. This air filling station is designed and engineered to enhance user safety in the event of SCBA or SCUBA cylinder failure. Its air operated safety interlock door and angled cylinder holder allow for smooth, hassle-free cylinder loading and unloading. Cylinder trays feature slides to minimize wear during handling. An internal fill hose offers straightforward, secure connections.

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• Single-bay design for filling of one SCBA or SCUBA cylinder at a time
• Easy-to-use locking bar with single-step activation
• Includes one supply pressure gauge from the storage bank
• Built-in pressure regulator with corresponding gauge
• Includes fill control with gauge
• High-pressure fill hose equipped with bleed valve
• Compatible with 2216, 4500, and 5500 PSI connections using handtight nuts and nipples
• Supports filling of SCBA (111 cu. ft.) or SCUBA (120 cu. ft.) cylinders up to 9.25" diameter by 32.375" length
• Choice of 45-degree or 90-degree door opening configuration
• Directly replaces older Bauer 4500 PSI models

Dimensions (HxWxD): 70" x 20" x 21"
Weight: 624 lbs

BoomBox6K™ AC70510 Brochure

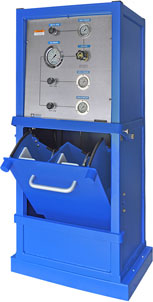

BoomBox6K™ 2 Position Fill Station with Standard Panel For SCBA up to 5500 PSI

AC70520SP

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Fill control valves and pressure gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 52" x 30" x 21"
Weight: 755 lbs

BoomBox6K™ AC70520 Brochure

Optional 2 Position Air Panels Click Image to view

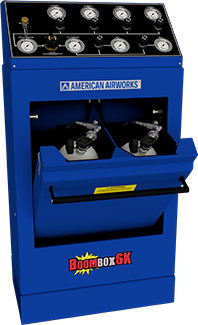

BoomBox6K™ 2 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI

AC70520A-4A

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 57" x 30" x 21"
Weight: 780 lbs

OPTIONAL
AC70520A-4B
Includes all features of the AC70520A-4A as well as:

• Auxillary Outlet Connections on front & rear with Regulator, Valve & Gauge


AC70520A-4C
Includes all features of the AC70520A-4A, plus:

• Priority Fill Selection system, allowing filling directly from the compressor or storage supply.


AC70520A-4D
Includes all features of the AC70520A-4A, plus:
• Auxiliary outlet connection, with a regulator, valve, and gauge
• Priority Fill Selection system for directing fills from either the compressor or storage supply

BoomBox6K™ Fill Station with Cascade Air Control Panel

AC70520T-4A

Boombox containment fill stations, equipped with air cascading gauges and on/off panel valves, provide easy and precise control of the SCBA refilling operation. They also give you a greater number of SCBA cylinder refills than a bulk fill air control panel. Tilt out cylinder tray makes loading and unloading of cylinders easy. Slides on cylinder trays protect cylinders from scuffing. Fill hoses are designed for easy connection inside the fill station.

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• Dual containment fill station allows for filling one or two SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauges, Regulator, 4.0" SCBA fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 70" x 30" x 21"
Weight: 838 lbs

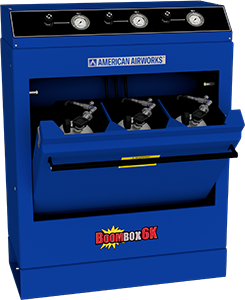

BoomBox6K™ 3 Position Fill Station with Standard Panel For SCBA up to 5500 PSI

AC70530SP

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• 3 Position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time

• Single action locking bar activation

• Fill control valves and pressure gauges

• 3 Filling hoses with bleed valves

• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD):52" x 40" x 21"
Weight: 960 lbs

BoomBox6K™ AC70530 Brochure

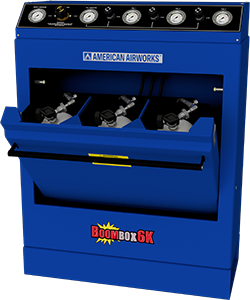

BoomBox6K™ 3 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI

AC70530RP

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• Dual filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 52" x 40" x 21"
Weight: 963 lbs

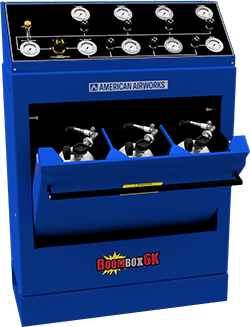

BoomBox6K™ 3 Position Fill Station with Regulated Panel For SCBA up to 5500 PSI

AC70530A-4A

• NFPA 1901 & NFPA 1900:2024 Edition compliant

• 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauge, Regulator, Fill pressure gauge, Dual fill control valves and gauges
• 3 Filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 57" x 40" x 21"
Weight: 983 lbs

OPTIONAL
AC70530A-4B
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge

AC70530A-4C
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Priority Fill Selection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge

AC70530A-4D
• 4 Bank Air Control Panel,Includes:Inlet Gauges,Control Valves, Adjustable Pressure Regulator, Regulated Pressure Gauge, Compressor Inlet Connection,Priority Fill Selection,Auxillary Outlet Connection Including Regulator w/Valve & Gauge

Optional 3 Position Air Panels Click Image to view

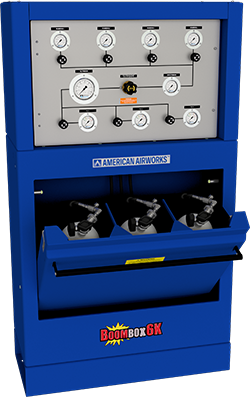

BoomBox6K™ Fill Station with Cascade Air Control Panel

AC70530T-4A

Boombox containment fill stations, equipped with air cascading gauges and on/off panel valves, provide easy and precise control of the SCBA refilling operation. They also give you a greater number of SCBA cylinder refills than a bulk fill air control panel. Tilt out cylinder tray makes loading and unloading of cylinders easy. Slides on cylinder trays protect cylinders from scuffing. Fill hoses are designed for easy connection inside the fill station.

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• Air Control Panel includes: Supply pressure gauges, Regulator, 4.0" SCBA fill pressure gauge, fill control valves and gauges
• 3 Filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 70" x 40" x 21"
Weight: 1054 lbs

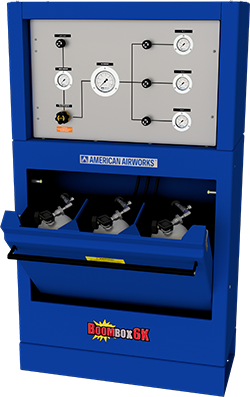

BoomBox6K™ Fill Station with Bulk Fill Air Control Panel

AC70530TB

Bulk filling stations connect all the supply cylinders together, like one large supply cylinder, and provide a single supply pressure gauge for the operator. As with all containment fill stations, there is increased operator protection from a ruptured SCBA cylinder. These units featuring an air operated door safety interlock and tilting cylinder tube make loading and unloading easy. Slides on cylinder trays protect cylinders from scuffing. Fill hoses are designed for easy connection and are inside the fill station.

• NFPA 1901 & NFPA 1900:2024 Edition compliant
• 3 position containment fill station allows for filling one, two or three SCBA or SCUBA cylinders at a time
• Single action locking bar activation
• One Inlet gauge from storage
• Regulator and regulated pressure gauge
• SCBA fill control valves and gauges
• 3 Filling hoses with bleed valves
• 2216/4500/5500 PSI handtight nut & nipples
• Fills either 111 cu. ft. SCBA or 120 cu. ft. SCUBA cylinders up to 9.25 in. x 32.375 in.
• 45° or 90° Door Opening Options
• Direct replacement for older 4500 psi Bauer fill stations.

Dimensions (HxWxD): 70" x 40" x 21"
Weight: 1045 lbs
