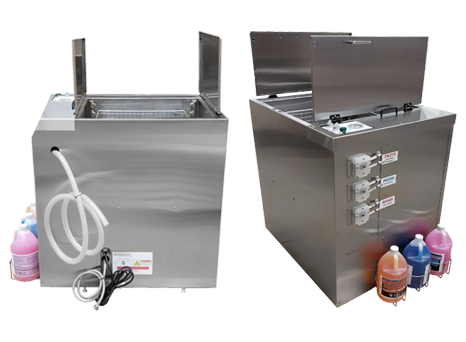

GS2600 Respirator Washer
|
|
|
|
GS2600 SYSTEM INCLUDES
- Two Stainless Steel Baskets (GS2102)
- Automatic Chemical Injection System
- Three chemical Pumps
- Initial detergent (FK270-G), disinfecting (FG350-G), rinse agent (RP355-G)
- One year parts and labor warranty
The GS2600 Respirator Washer is ideal for light to medium volume cleaning and disinfecting applications. Easily accommodates 16 full-face or 32 half-masks per cycle. Will also accommodate tanks. Specially programmed cycle to eliminate excess sudsing in the wash tank and the need for foam control chemistries. This cycle is designed with a pre-wash cycle, which utilizes a specially formulated low foaming detergent to clean masks. Followed by a 10 minute disinfect cycle guaranteeing proper equipment disinfection. Finally, a series of fresh water rinses to complete a comprehensive fully automatic wash.
- Energy Efficient
- Easy-to-Use
- Automatic Chemical Injection System
- Door activated start / stop safety feature
- 100% fresh water rinse
SAFE AND EASY TO USEA true multi-use washer that automatically pre-cleans, disinfects, and rinses at the push of a button. The automatic chemical injection option ensures a precise wash - cycle after cycle. The GS2600 provides a low temperature bath that assures a minimum of wear and tear on personal protective equipment.
GUARANTEED
A one year parts and labor warranty, and compliance with ANSI, NFPA, OSHA, and CSA Standards. The GS2600 incorporates a combination of the most effective disinfectant, and rinse chemistries to ensure the best automatic wash possible and protect workers against today's health threats. Guaranteed not to harm the facemasks of any respirator manufacturer.
INSTALLATION
- 8 foot power cord
- 8 foot 3/4 ID flexible drain hose
- 4 foot flexible water intake hose with 3/4 " female GHT
SPECIFICATIONS
|
Electrical
- Power Cord: 8 ft
- Plug: NEMA 5-15P 15 Amp
- Power Supply: 120 Volts, 50/60 Hz, 14 Amp, 1 phase
|
Cycle Time
|
|
Water Supply
- Inlet: 3/8" hose ID with a 3/4" GHT
- Pressure: 50 psi (Recomended) (Max: 75, Min: 40)
- Temperature: User supplied (110° F recommended)
|
Capacity per Cycle
- Full-face Masks: 16
- Half-face Masks: 32
- Baskets: 2 (20"x20"x7"(H))
|
|
Drain
- Hose Length: 8 ft
- Hose ID: 3/4"
|
Pump Size
- 1 hp Wash Pump
- 1/4 hp Drain Pump
|
|
Dimensions
- Height: 39"
- Width: 36"
- Depth: 29"
- Weight: 500 pounds (Crated)
|
Water Requirements
- Gallons per Fill: 8
- Gallons per Cycle: 24 (Average)*
*Cycle includes; Pre-Clean, 10 Minute Disinfect, and Rinse
|
|
|
|
|
|
|
|
|
