Air / Oxygen Boosters

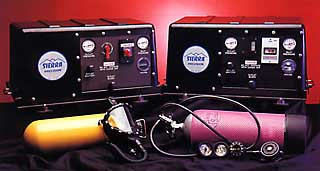

Sierra Precision Boosters

Sierra Air Booster Logo

Sierra boosters are electrically powered and compress breathing air & inert gases to 5000 PSI from 1500 PSI or boost air to 2216 PSI from 800 PSI. The 12000 model will boost air to 6000 PSI. Sierra boosters are available in several models. (See chart below)

Models 9000 and 12000 are pre-set to automatically stop at 5000 or 6000 PSI respectively. They are manually re-started. These models can also be purchased with the ability to automatically restart, when the pump senses a drop in pressure. The models 9000 A-2 and 12000 A-2 have a selectable stop pressure switch for either 2216 or 4500 and 4500 or 6000 PSI air fills.

Sierra Booster Installation Options

Sierra Boosters

SIERRA AIR & INERT GAS BOOSTERS

Sierra Model 9000
The 9000 is the standard model and is designed to fill cylinders to one pressure setting. Typical settings are either 2216 psi or 4500 psi. Pressure settings are pre-set at the factory and adjustment in the field, when necessary, is simple and straightforward. When filling cylinders, the unit pumps until the desired, pre-set air pressure is met and then shuts off automatically. This eliminates any guesswork in determining when the cylinder is full.

Sierra Model 9000-A2
The 9000-A2 model maintains the same proven performance as the 9000-00 model with the added features of two pressure settings and auto starting.

Changing between filling pressures only involves the turn of a valve handle. Whether in the field or at the station, alternating between 2216 & 4500 psi cylinders is easy. For example, after filling a cylinder, the operator conveniently turns a knob one-half turn to fill a cylinder of a different pressure. No tools are needed and both settings are pre-set at the factory. This eliminates the guesswork involved in filling the different pressure-rated bottles and there is also no fear of overfills because both circuits have a "vent to atmosphere" safety relief valve.

Sierra Model 12000
The 12000-00, which is designed to fill cylinders to 6000 psi, enables fire stations with 5000 psi compressors to recharge 6000 psi cascade storage tanks.

The Sierra 12000-A2 model allows the user to recharge storage bottles AND also fill SCBA cylinders. Typical settings for the A2 are 4500 psi and 6000 psi and switching between pressure settings only requires the turn of a valve handle.

With the 9000 A-2 and 12000 A-2 automatic on/off switching, the booster will pump until the maximum pressure setting is reached, then will automatically shut off. After the valve is closed, the full cylinders can be replaced with empty cylinders. Re-opening of the valve will send a low pressure signal to the booster which will automatically start pumping and repeat the cycle.

Sierra Booster Flyer PDF Download

2216/4500 PSI Dual Pressure
Part #
Voltage
Phase
Amps
Auto
Start
Remote
Cable
**
Price
AC90054-A2
110
1
24
X
-
$9020
AC90054-A2R
110
1
24
X
X
$9444
AC90055-A21
220
1
12
X
-
$9020
AC90055-A2R1
220
1
12
X
X
$9444
AC90055-A23
220
3
6
X
-
$9020
AC90055-A2R3
220
3
6
X
X
$9444

5000 PSI Single Pressure
Part #
Voltage
Phase
Amps
Auto
Start
Remote
Cable
**
Price
AC90054-00
110
1
24
-
-
$8063
AC90054-00R
110
1
24
-
X
$8487
AC90054-A0
110
1
24
X
-
$8384
AC90054-A0R
110
1
24
X
X
$8808
AC90060-001
220
1
12
-
-
$8063
AC90060-00R1
220
1
12
-
X
$8487
AC90060-A01
220
1
12
X
-
$8384
AC90060-A0R1
220
1
12
X
X
$8808
AC90060-003
220
3
6
-
-
$8063
AC90060-00R3
220
3
6
-
X
$8487
AC90060-A03
220
3
6
X
-
$8384
AC90060-A0R3
220
3
6
X
X
$8808

4500/6000 PSI Dual Pressure
Part #
Voltage
Phase
Amps
Auto
Start
Remote
Cable
**
Price
AC90056-A21
220
1
12
X
-
$9339
AC90056-A2R1
220
1
12
X
X
$9673
AC90056-A23
220
3
6
X
-
$9339
AC90056-A2R3
220
3
6
X
X
$9673

6000 PSI Single Pressure
Part #
Voltage
Phase
Amps
Auto
Start
Remote
Cable
**
Price
AC90057-001
220
1
12
-
-
$8381
AC90057-00R1
220
1
12
-
X
$8806
AC90057-A01
220
1
12
X
-
$8702
AC90057-A0R1
220
1
12
X
X
$9127
AC90057-003
220
3
6
-
-
$8381
AC90057-00R3
220
3
6
-
X
$8806
AC90057-A03
220
3
6
X
-
$8703
AC90057-A0R3
220
3
6
X
X
$9127

Part # Accessory Parts Price
AC94700-2054 Remote Switch, Rotary On/Off (allows auto restart) $125
AC60010 HP Regulator 6000/5000 Gauges $411
Note: A pressure reducing regulator may be needed with
booster click here to see installation ideas.

** Remote Cable does not include remote switch.
The remote switch must be purchased separately

Booster Specifications
Overall Dimensions

Width - 34.75 inches
Height - 16 inches
Depth - 19 inches

Shipping Weight - 145 pounds




1.5 HP single or three phase electric motor
Motor Amperage Rating

Single Phase - 110
Full load amps - 21.0
NLA (no load amps) - 18.6
Start up (locked rotor) - 148.0

Single Phase - 220
Full load amps - 10.5
NLA (no load amps) - 9.30
Start up (locked rotor) - 74.0

Three Phase - 208-230
Full load amps - 4.8
NLA (no load amps) - 3.5
Start up (locked rotor) - 34.0
