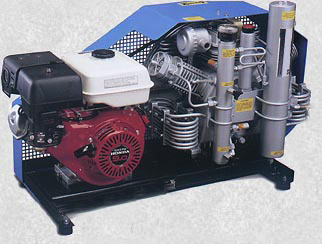

Portable high pressure breathing air compressors for your mobile breathing air applications. Our Fast 90 portable breathing air compressors provide 5000 PSI breathing air. This three stage basic compressor is compact in size and very user friendly. The standard features include manual moisture drains, hour meter, outlet pressure gauge. Complete with a 9000 CF cartridge purification filtration chamber. Filtration system provides grade E breathing air for SCBA and SCUBA use. This is a continuous duty compressor.

Construction: Continuous duty air cooled, three stage, three cylinder high pressure compressor. All stainless steel interstage and final stage coolers. Mounted on a free standing, shock mounted frame of heavy duty, powder coated steel.

Drive Motor: AC electric 7.5 hp in single or three phase, or 9 hp Honda® gasoline, 9 hp Honda® Diesel or 9 hp Yanmar® diesel.

Purification: Grade E breathing air with activated carbon/molecular sieve/hopcalite to convert CO to CO2.

Disposable purification cartridge is convenient and easy to replace 9000 CF.

Manual condensate drains.

Digital hour/tachometer standard on gasoline model

Max Pressure: 5000 psig - 340 bar.

Final Pressure Gauge (liquid filled, stainless steel).

Pressure maintaining valve (Priority valve).

Pressure Relief valves at all stages.

Cylinder Diameters: 1st stage 95mm, 2nd stage 38mm, 3rd stage 14mm.

Intake filter.

Lubrication: Positive splash lubrication with oil thrower pin.

Oil Type: Synthetic compressor oil.

Oil Capacity: 51 oz (1.5 L).

Gas/Diesel Capacity: 1.59 US Gal. (6.01 L).

Spare Parts List and Owner's Manual.

One Year Warranty.


	Weight	Dimensions
Honda Gas model	253 pounds	44.5" L x 19.5" D x 25.75" H
Honda Diesel model	320 pounds	44.5" L x 19.5" D x 25.75" H
Yanmar Diesel model	342 pounds	44.5" L x 19.5" D x 25.75" H
AC Electric - single phase	300 pounds	44.5" L x 19.5" D x 25.75" H
AC Electric - three phase	300 pounds	44.5" L x 19.5" D x 25.75" H

Compressor chassis subject to change based upon power requirements.
