High pressure, breathing air compressor for SCUBA or SCBA. Designed for economy and mobility in an affordable package.

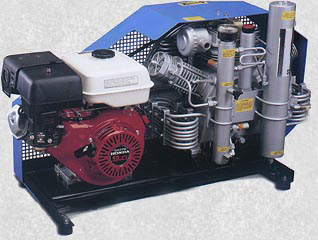

The Fast 50 is a dependable, high quality
breathing air compresor designed for continuous duty at an affordable investment.
Heavy duty design has commercial, marine, military, dive center, police and fire department applications. Compare the Fast 50 with other
compressors of its type. You will find the Fast 50 is a high
quality, reasonably priced, dependable compressor that is ideal for location dives,
pleasure boats or fixed installations. Available in a variety of drive units to fit
any requirement.Construction: Continuous duty air cooled, three stage, three cylinder high pressure compressor. All stainless steel interstage and final stage coolers. Mounted on a free standing, shock mounted frame of heavy duty, powder coated steel.
Drive Motor: AC electric 5.0 hp in single or three phase, or 6.5 hp Honda® gasoline.
Tri-Chem breathing air purification system with activated carbon/molecular sieve/hopcalite.
Disposable purification cartridge is convenient and easy to replace.
Manual condensate drains.
Digital hour/tachometer standard on gasoline model
Max Pressure: 5000 psig - 340 bar.
Final Pressure Gauge.
Pressure maintaining valve.
Pressure Relief valves at all stages.
Cylinder Diameters: 1st stage 88mm, 2nd stage 36mm, 3rd stage 14mm.
Intake filter.
6-foot Intake Hose with fittings (gas model)
Lubrication: Splash lubrication with oil thrower pin.
Oil Type: Synthetic compressor oil.
Oil Capacity: 51 oz (1.5 L).
Spare Parts List and Owner's Manual.
One Year Warranty.
| Weight
|
Dimensions
|
|
| Gas model | 276 pounds | 42" L x 20" D x 28.5" H |
| AC Electric - single phase | 336 pounds | 40" L x 20" D x 28.5" H |
| AC Electric - three phase | 276 pounds | 40" L x 20" D x 28.5" H |
