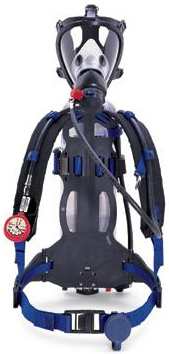

Survivair SCBA
Type of Unit Open-circuit, positive pressure, self-contained breathing apparatus
Duration Certified by NIOSH to provide a nominal service time of 30, 45, or 60 minutes
Apparatus Weight
(Fully Charged)
30-minute --- 18-30 lbs.
45-minute --- 23 lbs.
60-minute --- 28 lbs.
Cylinder Pressure 2216, 3000, or 4500 psig
Cylinder Capacity 30-minute --- 45 Cubic Feet
45-munite --- 66 Cubic Feet
60-minute --- 87 Cubic Feet
Hydrostatic Test
3 years, 15-year life (fiberglass)
5 years, 15-year life (carbon)
5 years, indefinite life (aluminum)
Warranty Period 12 years for the Cougar SCBA
15 years on cylinder
Lifetime on 1st stage regulator
Overhaul Cycle 6 years on 2nd stage regulator
Silicone rubber Durable,Won't oxidize or react with ozone. Unsurpassed comfort, even in extreme heat or cold. Available in three color-coded sizes. (Twenty/20+® facepiece)
Five-strap harness and skirt Better sealing ability for improved comfort and fit.
Optional Headnet™ Mesh-style head harness for those who prefer this style.
Easily removable exhalation valve Faster and easier servicing.
First Stage Regulator
Minimal moving parts Dramatically enhances reliability, while reducing maintenance costs.
Second Stage Regulator
Compact, low profile Better downward vision, less chance of damage.
Air Klic™ fastening system Allows attachment in any orientation.
First-Breath-On Activation of unit without free flow. Can be kept in stand-by-mode.
Low-Air Alarm
Choice of bell or plain whistle alarm Can choose alarm that meets own needs.
Few moving parts Additional reliability and cost reduction.
Optional dual alarm Additional security in high-noise environments.
Mighty-Light® One of the lightest, easiest-to-use, and most comfortable backpacks in the industry.
No tools required No bolts or screws on harness for quick, easy disassembly and assembly.
Regulator holder Conveniently holds regulator in activated stand-by-position. Keeps contaminants and water out of disconnected regulator.
